BERKELEY NUCLEONICS BNC MODEL 400 PULSE GENERATOR 400B-006

The Model 400 is a precision pulse generator designed for testing and calibration in laboratory, industrial, and semiconductor environments. Known for its reliability and adjustability, it’s frequently used in:

• Timing and synchronization testing

• Laser trigger applications

• Semiconductor test systems

• General R&D environments in physics and engineering labs

🧩 Key Features:

• Pulse Delay: 0 to 10 seconds (programmable)

• Rise/Fall Time: < 2 ns

• Pulse Width: 10 ns to 10 seconds

• Repetition Rate: 0.001 Hz to 10 MHz

• Output Voltage: Up to ±10 V into 50 Ohm load

• Triggering: Internal, External, Manual

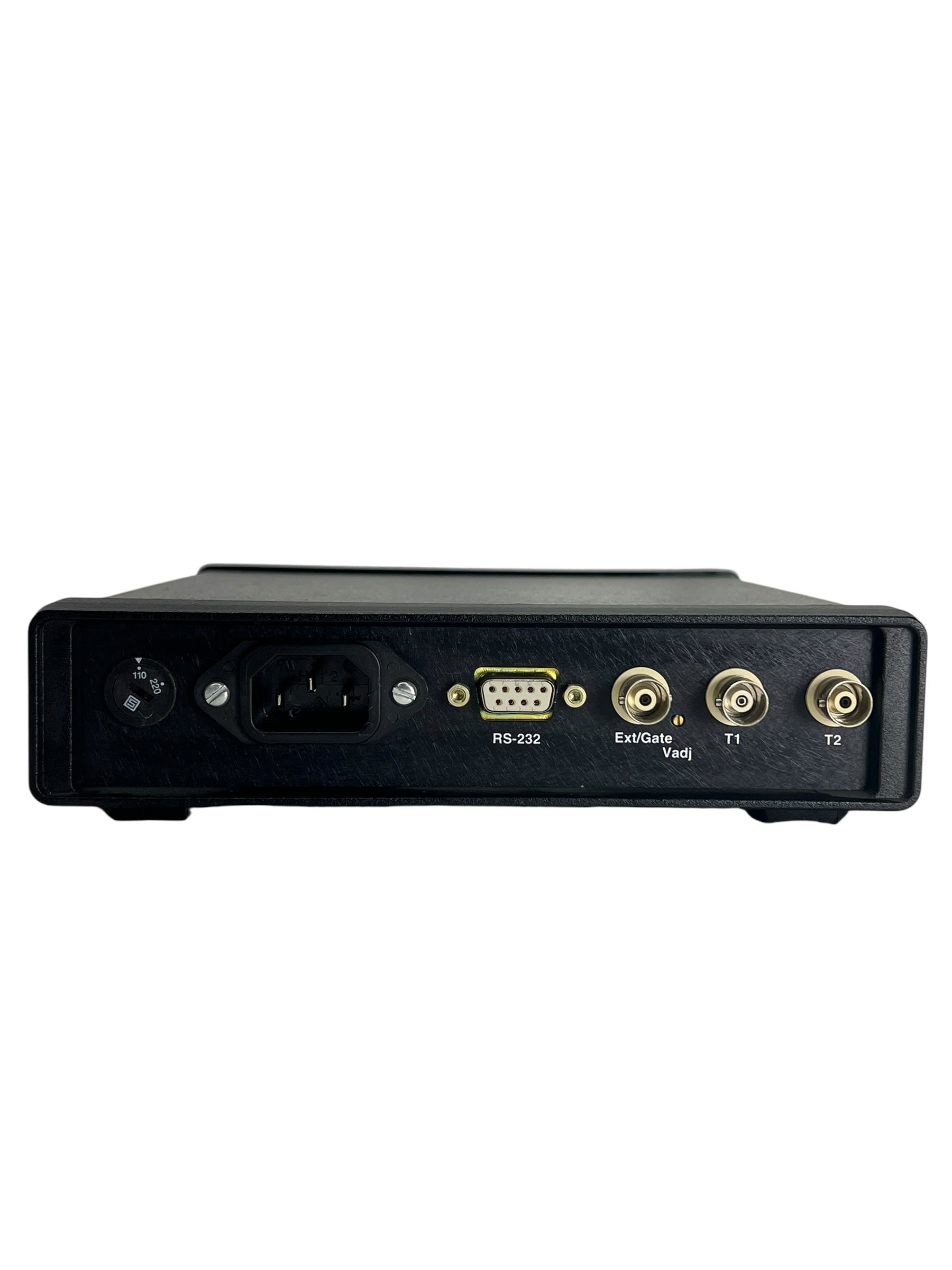

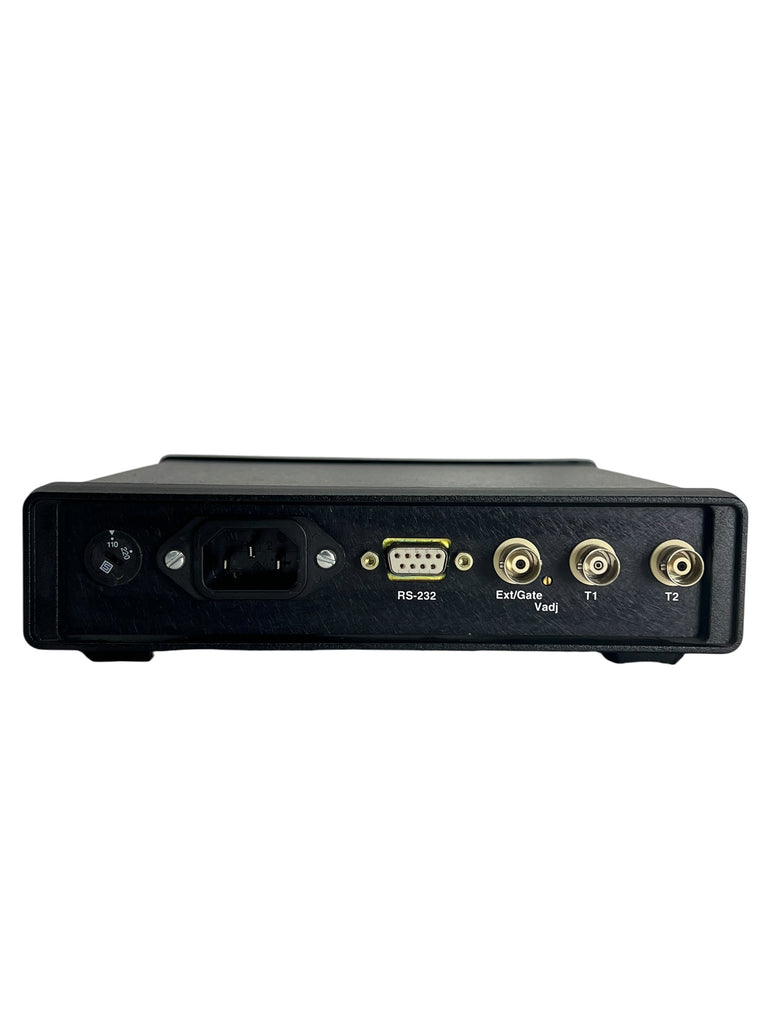

• Output Connectors: Standard BNC

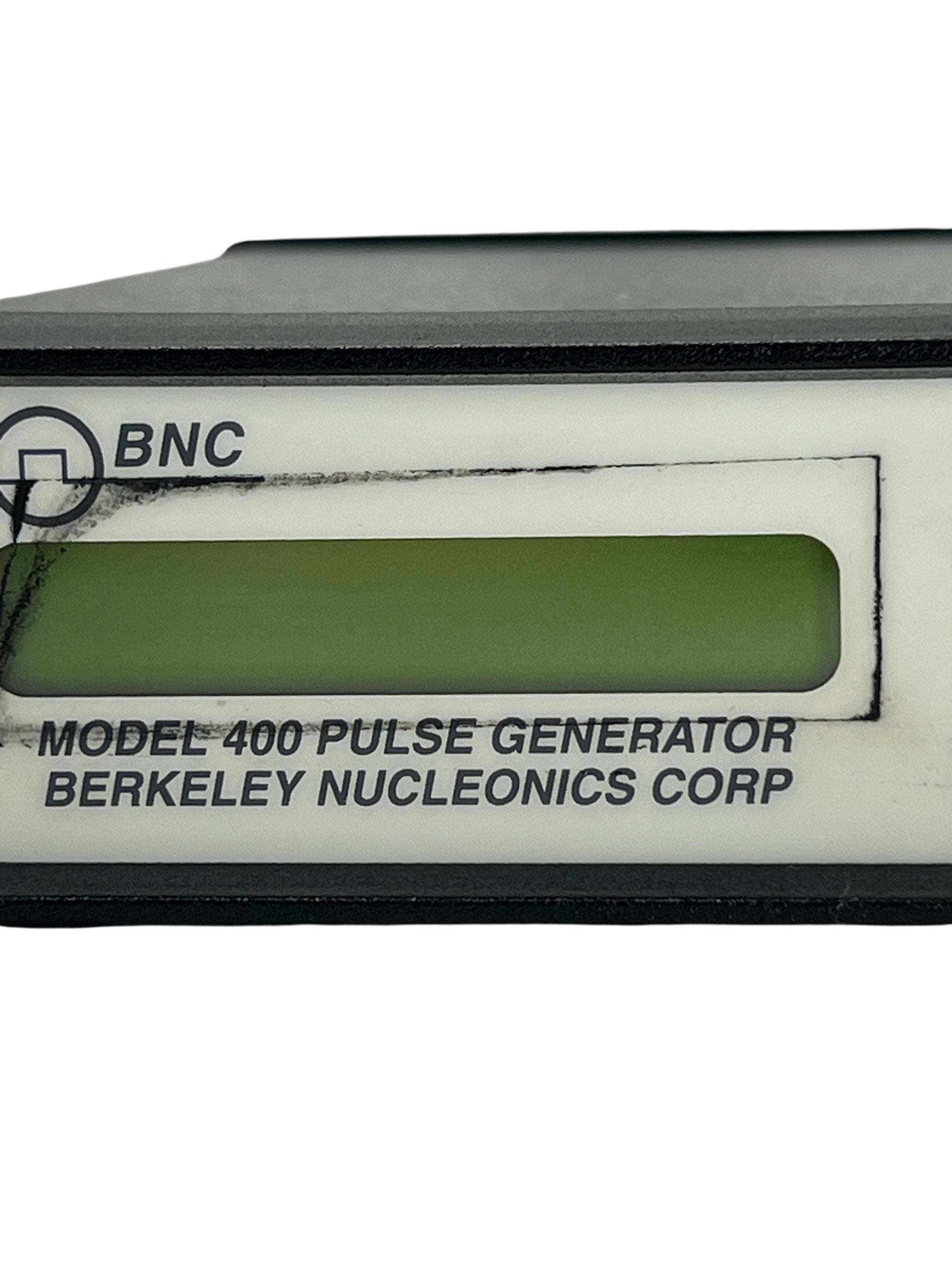

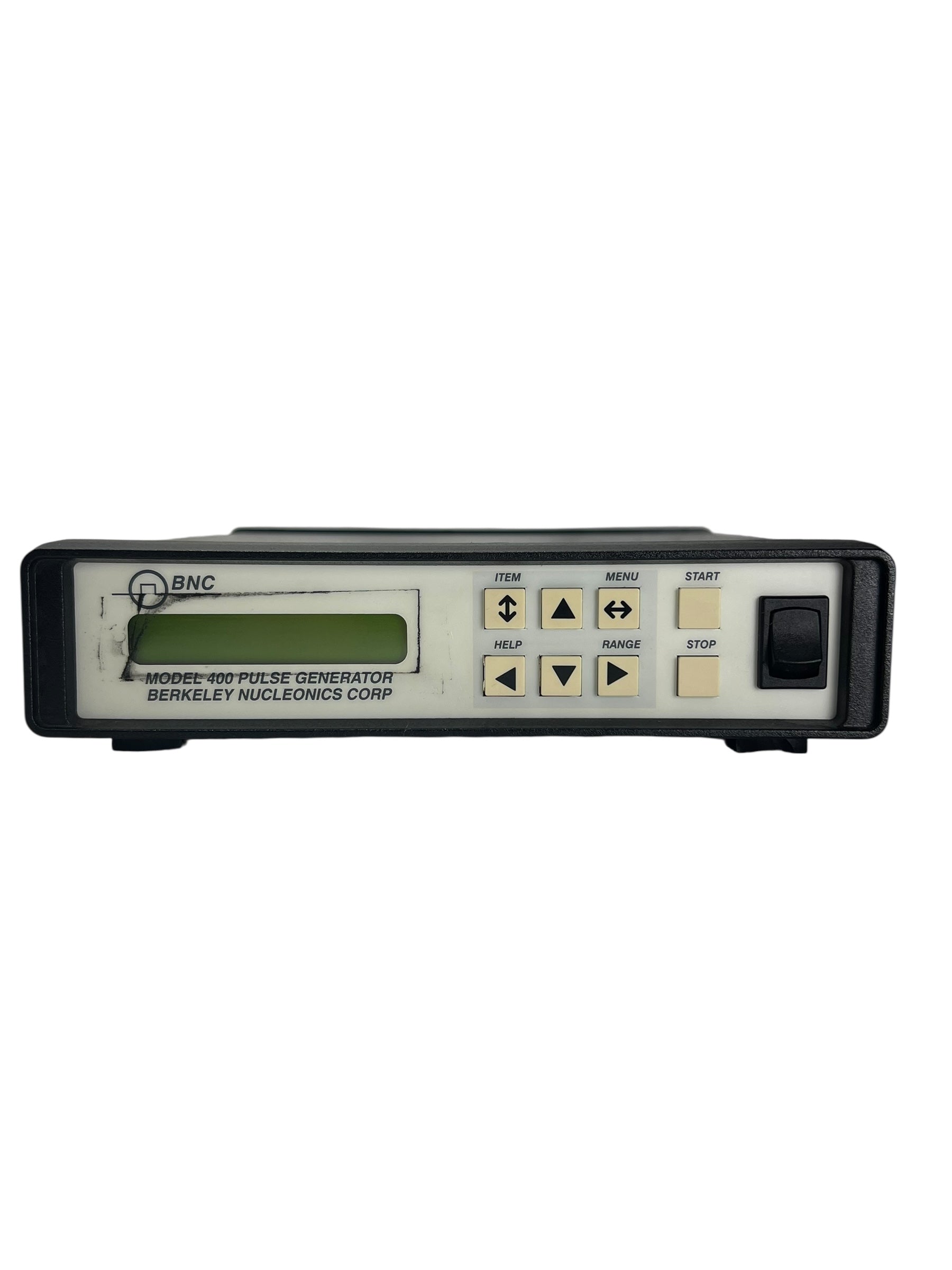

• Display: Front panel controls with display/readout

• Applications: Semiconductor diagnostics, test benches, laser timing

🔋 Power:

• Typically AC-powered

• Voltage requirements vary based on regional configuration

🔢 Part Number Notes:

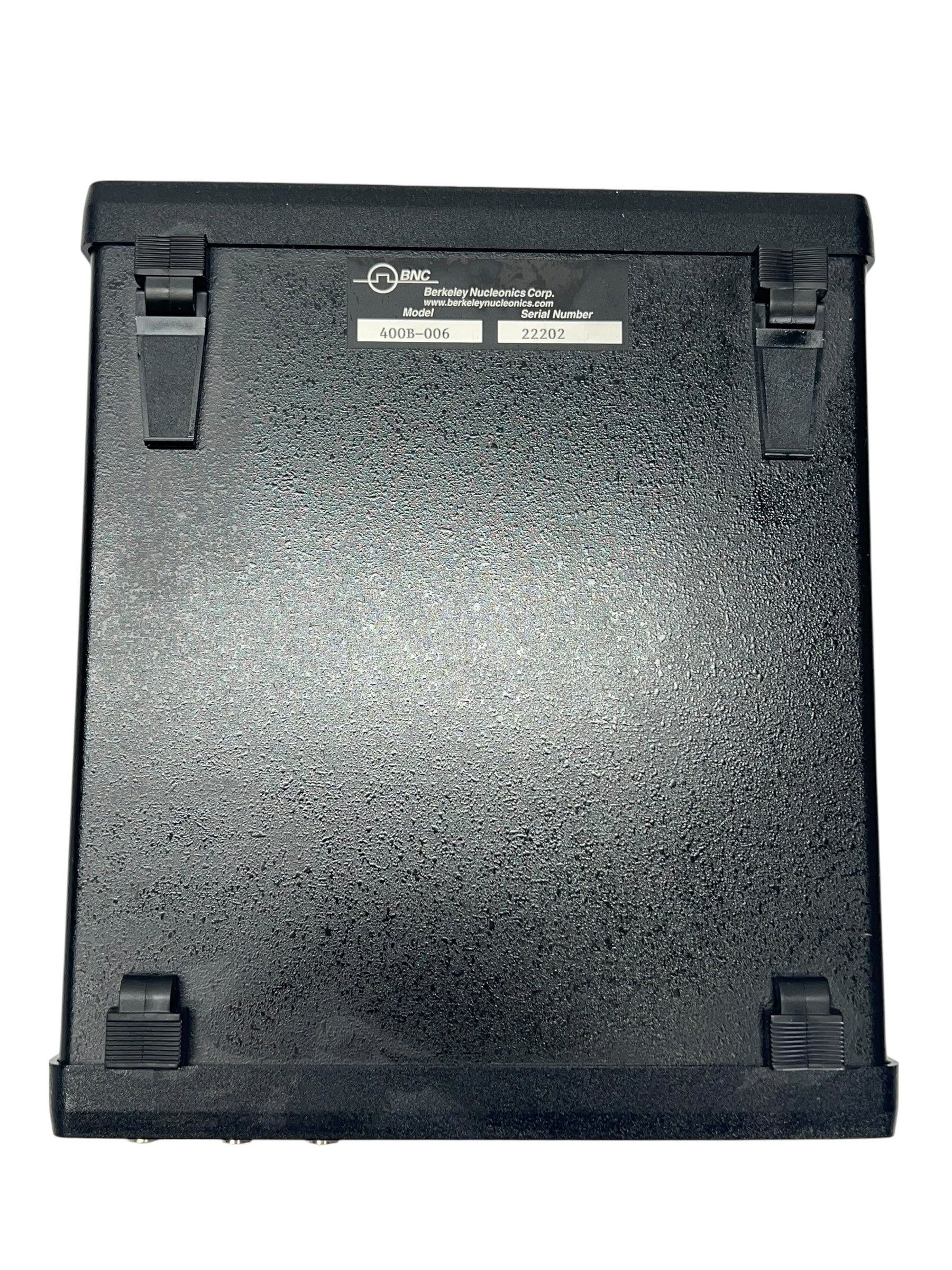

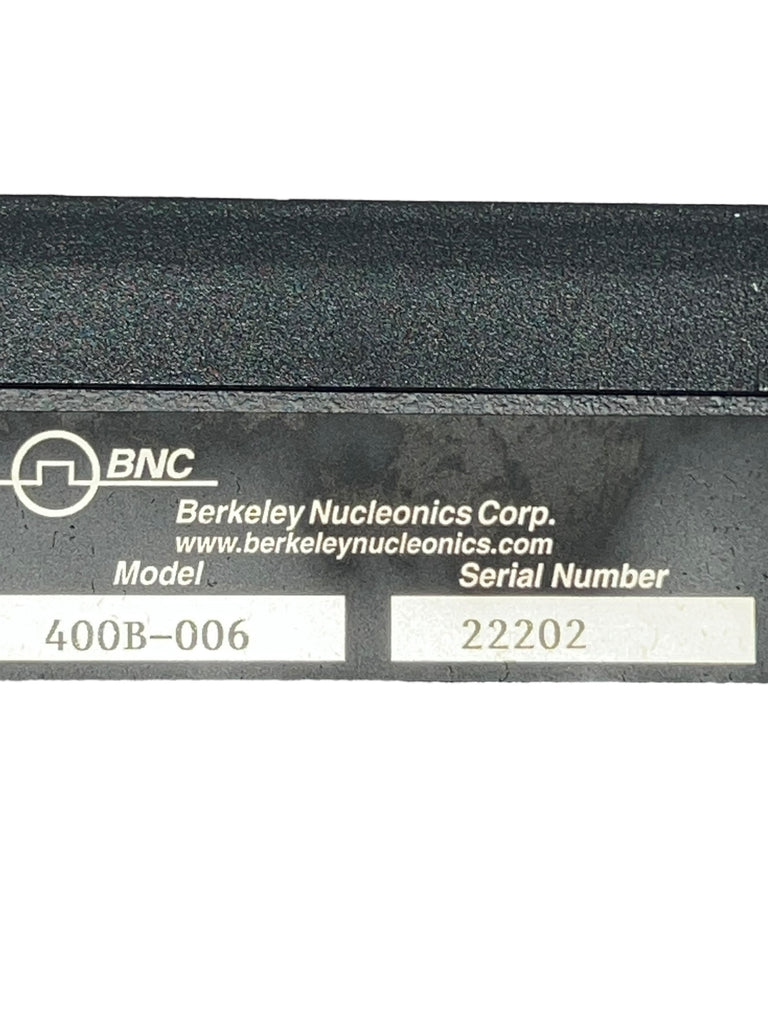

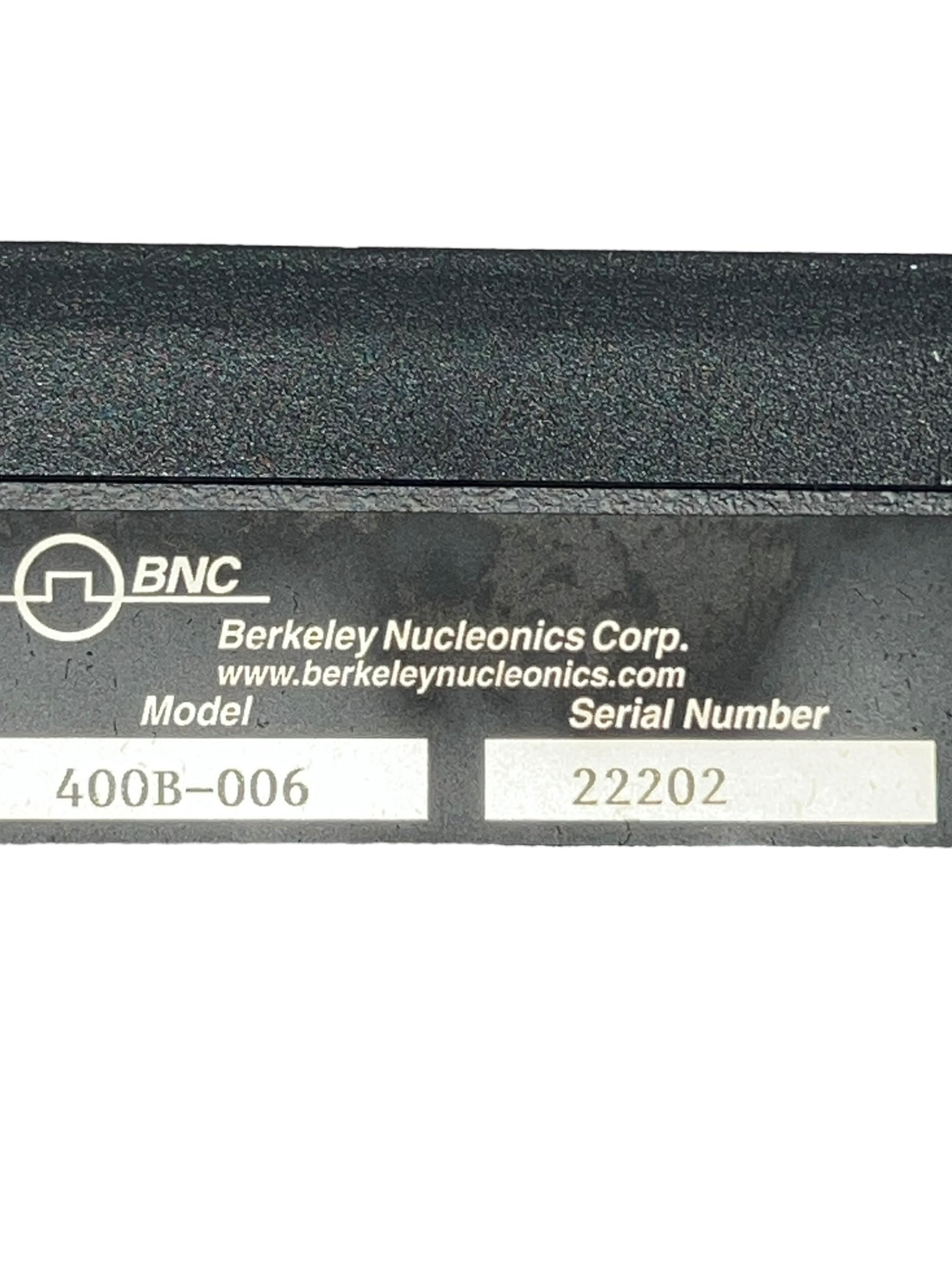

• 400B-006 is a specific configuration option of the standard Model 400, usually indicating a particular voltage output or delay range.
